CJ-K003

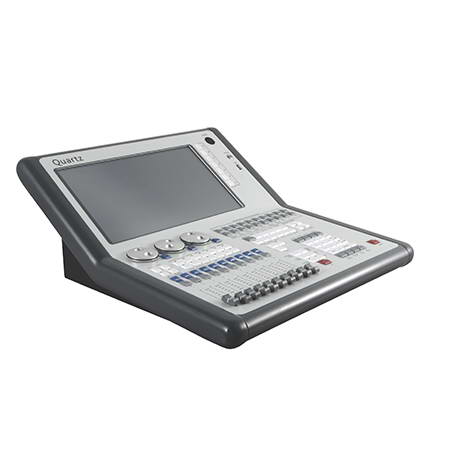

Quartz Console

Equipped with I3, optional CPU 60G solid state drive, 4G running memory
Quart one machine installs 9.1/10.0/10.1-11.0 four versions of the operating system arbitrarily switched
Ultra-compact profile is only 42.5cm wide
3 metal precision photoelectric encoders
10 groups of assignable playback faders (connected to Titan Mobile Wing, it can be expanded to add 20 groups of playback faders)
20 custom function buttons (video work window "Workspaces" / macro "Macros" / execute "playback")
  2048 channels 4 groups of independent DMX512 output, plus an Ethernet extender can increase the output channels to 8192 (expandable to 32768 output channels through Titan Net Processor)
Panel-mounted super high-speed USB 3.0 interface, Gigabit network port
MIDI input controls lighting effects and triggers timecode to automatically replay performance programs
Compatible with remote control operation of smart mobile phone Android and Apple system
Support multi-band sound trigger (sound-to-light)
Unified button layout with other Titan series consoles
1000 virtual trigger replay buttons
