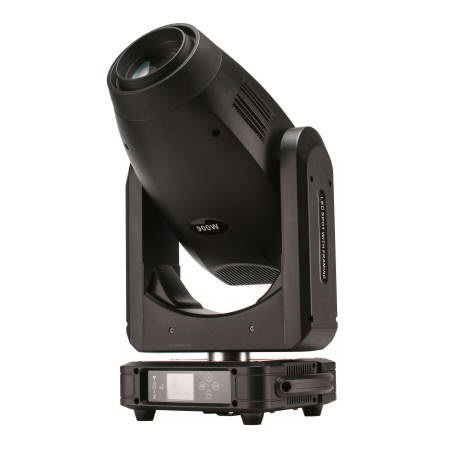

CJ-B900
LED 900W Multifunctional Cutting Light

Optical Technology
AC100~240v,50/60Hz
Input power: 900W
LED type: high-power 600W white light LED module
Color temperature: 6500K
LED life: 20,000 hours
Spot uniformity: 90%

Scanning technology
Horizontal scan: 540° (16 bit precision scan), fine-tuning accuracy 0.008°
Vertical scan: 270° (16 bit precision scan), fine-tuning accuracy 0.008°
Advanced scanning system is faster, more stable, quieter, with automatic error correction reset function

Color system
CMY Promise Color Mixing
CTO color temperature linear adjustment
Uniform and smooth CMY+CTO color mixing system
1 color plate: 6 fixed color plates + white light, which can realize two-way color rainbow, two-color step gradation, two-way rotation of the color wheel, and color plates can be positioned at will
Inside the pattern system
1 rotating gobo wheel: 6 plug-in rotating gobos + white circle, which can realize the effects of rotation, water flow, and jitter; the gobo wheel can be positioned.
1 fixed pattern plate: 7 fixed pattern pieces + white circle, with pattern jitter function
Dynamic effect panel: Super dazzling simulation of dynamic flames, gurgling water and other dynamic effects.

Control programming
2 channel modes: 34/54 international standard DMX512 channel control modes
Control protocol: standard DMX512 protocol, two-way transmission of RDM data. Art-net Ethernet control protocol and wireless DMX512 control (optional)
Prism disk: rotating pentaprism, can be rotated forward and backward, and has a prism positioning function
Focusing: electronic focusing, ultra-smooth focus adjustment
Aperture: 5%~100% smooth adjustment
Stroboscopic: The frequency can reach up to 25Hz, and the stroboscopic speed is 1-13 times per second. You can choose pulsation, asynchronous, synchronous, random slow, medium, fast, etc.
Dimming: 0~100% linear dimming
Atomization: 0~100% linear atomization
Magnification: 7°~42° linear zoom
Cutting disc: a set of controllable light spot cutting angle system composed of 8 corner cutting blades. The whole cutting angle system can be rotated by 90°. Through precise control of the light cutting sheet, it can create triangles, rhombuses and rectangles in any direction. Equal shape spot

display
2.8-inch LCD screen; Chinese and English languages can be switched at will, fonts can be reversed 180 ° display, contact type button operation mode.

Other functions
Input signal isolation protection function to ensure stable signal transmission without interference
Intelligent fan control
Temperature electronic sensor detection
DMX channel level monitoring
