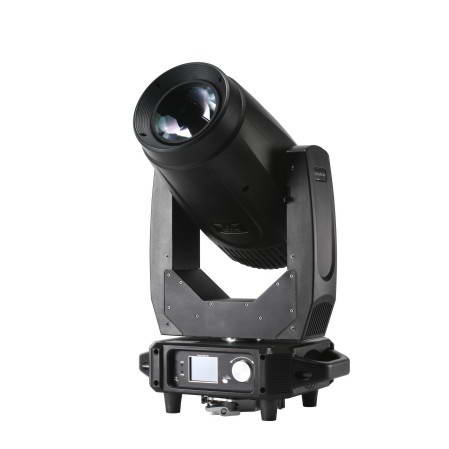

CJ-B600
LED 600W cutting light

Optical system
Light source: LED660W (white light)
Light source life: 30000-50000 hours
Indicator: CRI≥70/CRI95 optional
Focusing: high-precision glass lens, electronic linear high-definition focusing
Light output angle: 7°~42° linear high-speed zoom
Pattern system
Dynamic pattern: 1 rotating pattern plate has 7 optional pattern pieces
Alternative patterns: 1 fixed gobo plate and 8 gobos, variable speed jitter/two-way rotation effect
Alternative patterns: 1 dynamic fire plate, or linear CTO correction film
Color system
Fixed color: 1 fixed color plate with 7 color chips, linear color conversion and half-color rainbow effect
Cutting system
Cutting system: 4 gratings can realize fast and smooth cutting. The cutting direction and angle of each grating can be controlled separately, and a single chip can realize complete light-closing. The entire cutting module has an aperture.
Electrical System
Input voltage: 110V-240V 50-60Hz
Rated power: 750W
Power interface: waterproof plug input/output
Signal interface: 3-pin XLR plug input/output
Software and control
Channel mode: 27/36 channels
Communication design: DMX wired transmission, master-slave, self-propelled, gradual change, RDM two-way control technology, remote function effect upgrade
Display screen: LCD liquid crystal display, can be reversed 180 ° display, bilingual menu in Chinese and English
effect
Horizontal/Vertical: Horizontal scanning angle is 540°, vertical scanning angle is 270°, 16-bit precision scanning
Correction: automatic return correction and 16Bit precision fine-tuning function, using digital waveform correction technology to ensure accurate positioning of the X/Y axis, so that it will not run out of position after high-speed operation and reset.
Prism: independent rotating 4 prism effects, 16 macro functions
Dimming: 0%-100% linear dimming
Stroboscopic: 1-25Hz fast stroboscopic per second, with pulse stroboscopic, synchronous and asynchronous stroboscopic effects
Other functions
Sensor detection function: adopts photoelectric reset system, when an error occurs accidentally, it can automatically retrieve and reset the appearance
Automatic energy saving: an intelligent tracking energy saving system that reduces the power of the light source in time.
Sleep function: When the lamp is disconnected from the signal, it will automatically enter the dormant state, making the lamp more stable and safer.
Heat dissipation design: adopts wind direction drainage and temperature intelligent monitoring technology, automatically adjusts the heat dissipation system, and effectively controls the temperature of the lamp.
Physical/installation characteristics
Appearance: high temperature resistant plastic + molded alloy material
Working environment: -20℃-40℃
Protection level: IP20
Net weight: 24Kg
Lamp size: 420×310×730mm
Packing accessories: 1 manual, 1 safety rope; 2 light hooks
